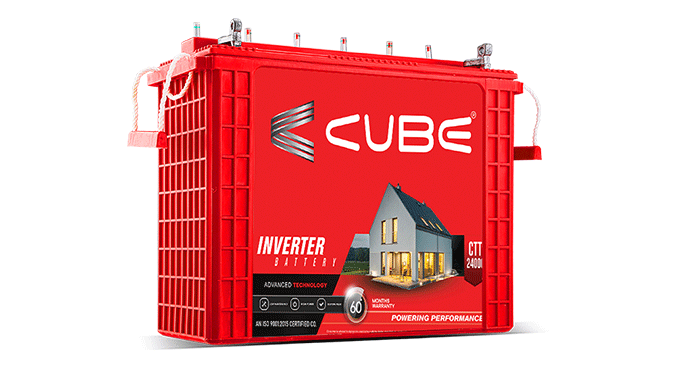

Cube

Home / Cube
about-img

Product Features

  • Capacity Rating C20 :- Specified in Indian standard IS 13369-1992 for UPS and Inverter battery.
  • Thick Spine Tubular Grids :- To cater deep discharge in long and frequent power cut.
  • Low Resistance PE Separators :- Avoids cell short circuit & low water loss features.
  • Tubular Gauntlets :- Tubular positive plates consisting of selenium alloy grids and properly balanced Active materials enclosed in chlorine free polyester gauntlets of high bursting Strength with high performance (HP)
  • High Charge Acceptance :- Suitable in areas of Frequent power cuts & Quick Charge Acceptance.
  • Well Designed :- Negative Plates over designed with special additives for long life.
  • Double nylon Rope Handle :- Safety and ease in handling.
  • SS Fastener :- Goodbye to sulphation/corrosion on terminals and on its joints.

Technical Specifications

Model VT-10000 VT-15000 VT-20000 VT-22000 VT-24000 VT-27000 VT-30000
Parameters 100Ah 150Ah 200Ah 220Ah 240Ah 270Ah 300Ah
Container PPCP PPCP PPCP PPCP PPCP PPCP PPCP
Separator PE Daramic PE Daramic PE Daramic PE Daramic PE Daramic PE Daramic PE Daramic
Nominal Voltage 12V 12V 12V 12V 12V 12V 12V
No. Of Cells 6 6 6 6 6 6 6
Design Life 6 Years 6 Years 6 Years 6 Years 6 Years 6 Years 6 Years
Nominal Capacity(20°C)
20 Hr Rate (10.5) 100Ah 150Ah 200Ah 220Ah 240Ah 270Ah 300Ah
10 Hr Rate (10.5V) 88Ah 132Ah 176Ah 193.6Ah 211.2Ah 237.6Ah 264Ah
Self Discharge <3%Pm <3%Pm <3%Pm <3%Pm <3%Pm <3%Pm <3%Pm
Operating Temperature Range
Discharge 0~55°C 0~55°C 0~55°C 0~55°C 0~55°C 0~55°C 0~55°C
Charge 0~55°C 0~55°C 0~55°C 0~55°C 0~55°C 0~55°C 0~55°C
Storage 0~55°C 0~55°C 0~55°C 0~55°C 0~55°C 0~55°C 0~55°C
Max. Discharge Current 77°F(25°C) 600A(3s) 600A(3s) 600A(3s) 600A(3s) 600A(3s) 600A(3s) 600A(3s)
Short Circuit Current 100A 150A 200A 220A 240A 270A 300A
Charge Methods:     CCCV 77°F(25°C)
Cycle Use     14.4-14.7V
Maximum Charging Current 10A 15A 20A 22A 24A 27A 30A
Temperature Compensation     75mV/300moh
Standby Use 13.8-14.2V 13.8-14.2V 13.8-14.2V 13.8-14.2V 13.8-14.2V 13.8-14.2V 13.8-14.2V
Dimension 495x190x430 495x190x430 495x190x430 495x190x430 495x190x430 495x190x430 495x190x430
Weight+-3% Kgs 53 58 64 66 69 72 78
